Seahawk – Slipstream

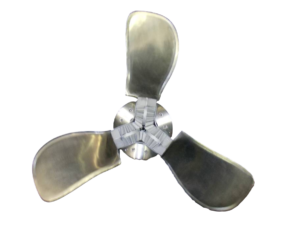

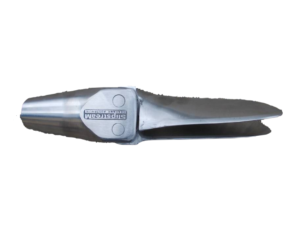

Slipstream® – 2B & 3B Geared Folding Sailboat Propellers

Saildrive and Inboard StylesSlip5slippic

Seahawk Australia and Austral Propellers have joined forces to bring you the “SLIPSTREAM” range of geared folding sailboat propellers.

For racing and social yachts, streamlining and smoothness of design is of major importance. Unwanted drag under sail can result from the use of two or three bladed fixed propeller installations. Slipstream Folding Sailboat propellers achieves the best of both worlds, providing both smooth flow when sailing and efficient forward and reverse propulsion under power.

Centrifugal force provides easy synchronized opening of the propeller blades when under engine power. Alternatively, under sail, the water flow closes the blades, significantly reducing drag. The gearing avoids the vibration and operational problems commonly associated with one blade moving independently of the other.





Design Features and Advantages:

  • Synchronized geared opening and closing
  • Folded position minimizes drag when sailing
  • Less drag than 2 or 3 blade fixed propellers
  • Saildrive models feature ‘fail-safe’ cushion hubs
  • All stainless steel construction
  • Full installation kit with each propeller
  • Propeller operates forward or reverse
  • Propeller design is efficient under power
  • Both saildrive and inboard styles available
  • Large blade area for excellent thrust
  • All wear components are user-serviceable
  • Five-year warranty against material & manufacturing defects

Click here to view the SlipStream brochure


Hub length for shaft size and taper
12:1 English10:1 Metric ISO
Shaft"A""B"Shaft"A""B"Shaft"A""B"
1"135701"1256025mm12560
1-1/8"140751-1/8"1256030mm14560
1-1/4"145801-1/4"1458035mm15388
1-3/8"153881-3/8"1458040mm15388
1-1/2"153881-1/2"15088

slipdraw

All Dimensions are in Millimetres


Blade Size"C"
14"165
15"178
16"190
17"203
18"215
19"228
20"240
